Affordable Laser Cutter

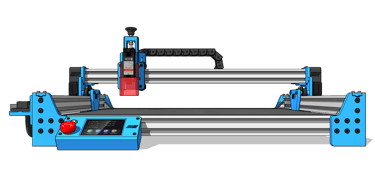

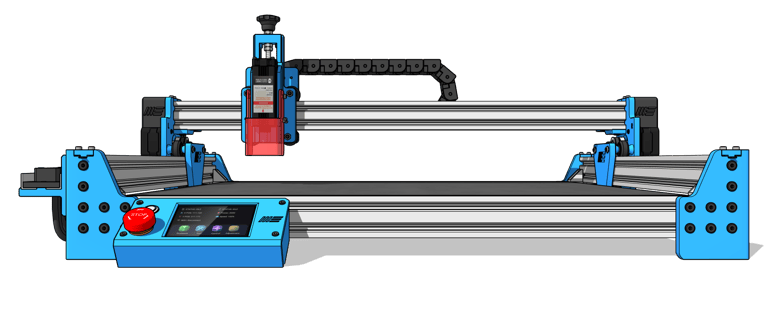

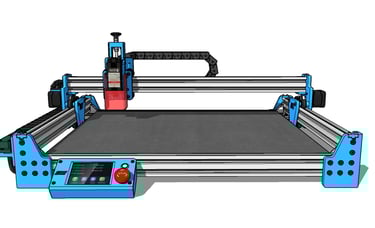

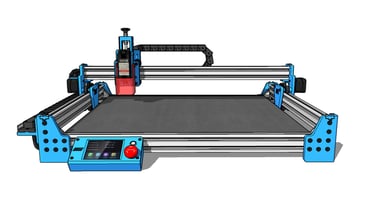

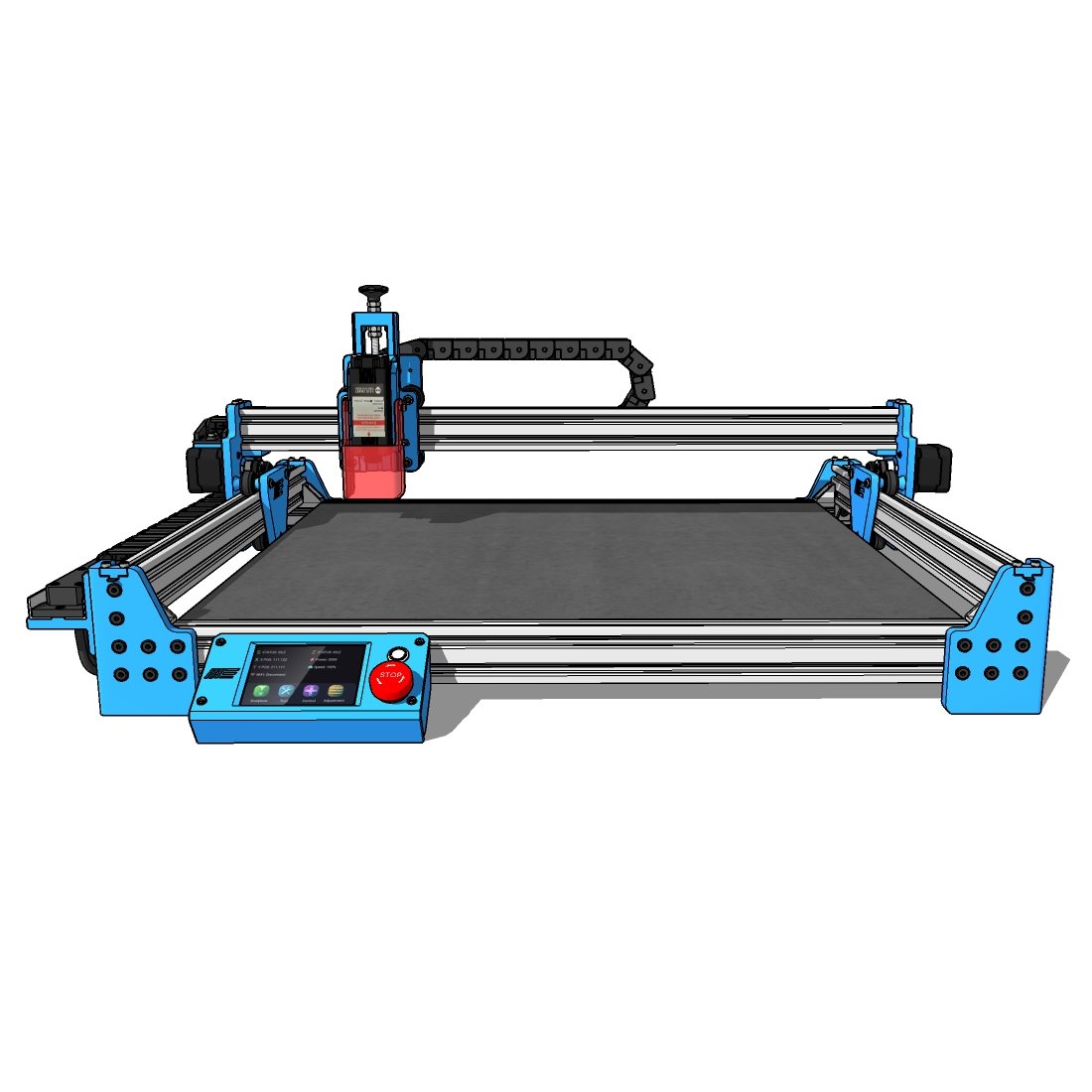

MY-Laser CNC v2

The MY-Laser CNC project started as a solution to an industrial challenge at my workplace. Over time, it evolved into an open-source project that I am now sharing with the community. This laser cutter is designed to be affordable, accessible, and customizable, making it perfect for makers, small businesses, and DIY enthusiasts.

With a 30W diode laser, an ESP32-based control system, and Wi-Fi & USB connectivity, the MY-Laser CNC provides a powerful and user-friendly laser engraving and cutting experience.

Affordable & Easy to Build

Why Choose MY-Laser CNC?

Uses readily available components and materials.

Open-Source & Community-Driven

Customizable & Expandable

Advanced Features

Fully documented with an active maker community.

Modify and improve according to your needs.

Mobile and web-based control, adjustable laser height, and a touchscreen interface.

Technical Specifications

You didn’t come this far to stop

Work Area & Design

• Working Area: 500 x 350 mm

• Machine Size: 740 x 560 x 260 mm

• Laser Height Adjustment: Manual

• Frame: V-Slot aluminum extrusion

• Type: Diode Laser

• Power Output: 30W

• Cooling System: Built-in fan

• Air Assist: Optional add-on

• Control Board: Makerbase MKS DLC32 (ESP32)

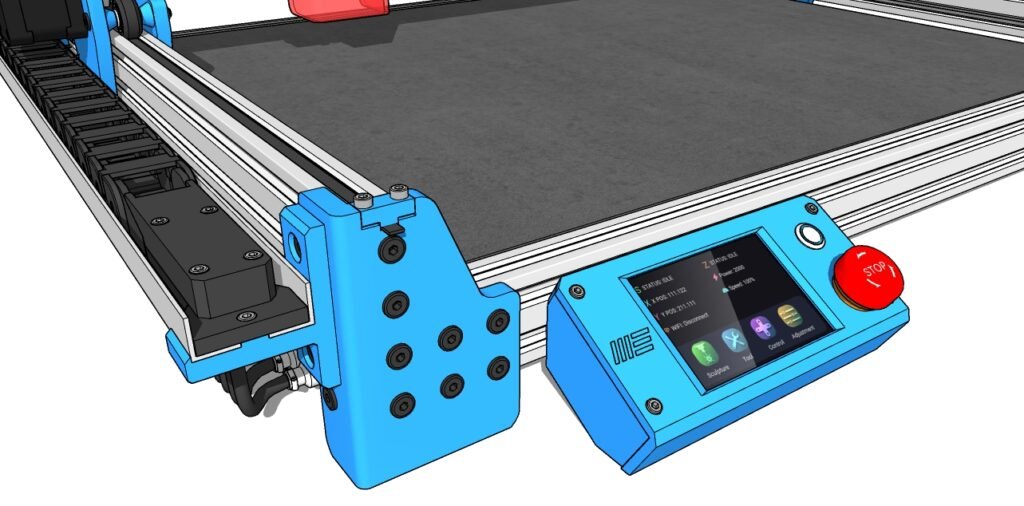

• Display: 3.5" Touchscreen (MKS TS35-R V2.0)

• Software Compatibility: LaserGRBL, LightBurn

• File Formats: SVG, PNG, JPG, BMP, DXF

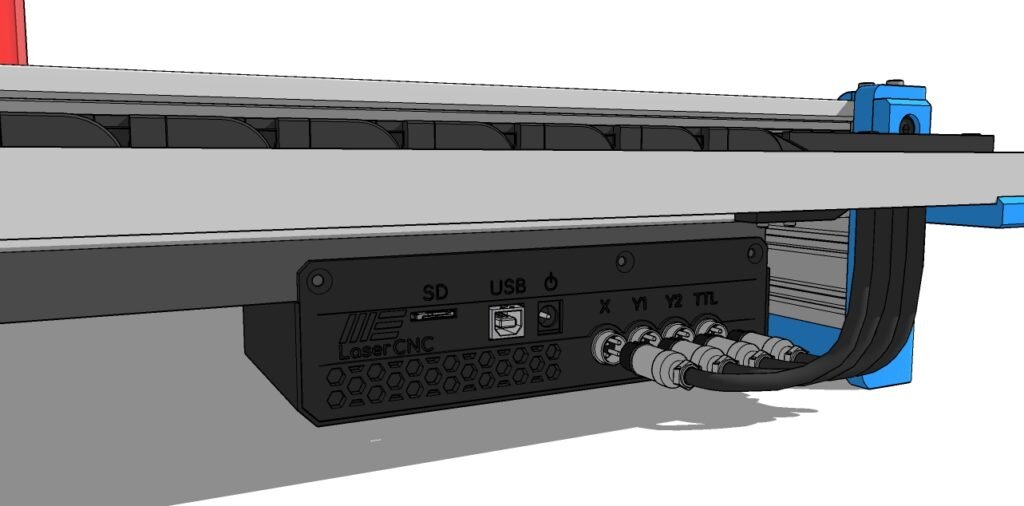

• Connectivity: USB & Wi-Fi

• Mobile App & Web Interface: Yes

Laser Module

Control & Connectivity

Materials Supported

• Cutting: Wood, plywood, MDF, acrylic (opaque), leather, fabric, cardboard, paper, rubber

• Engraving: Wood, acrylic, coated metals, glass, ceramics, leather, textiles

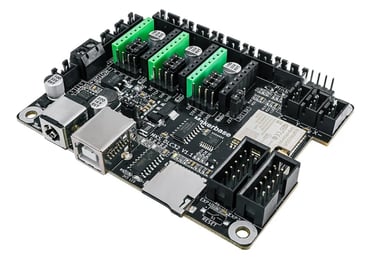

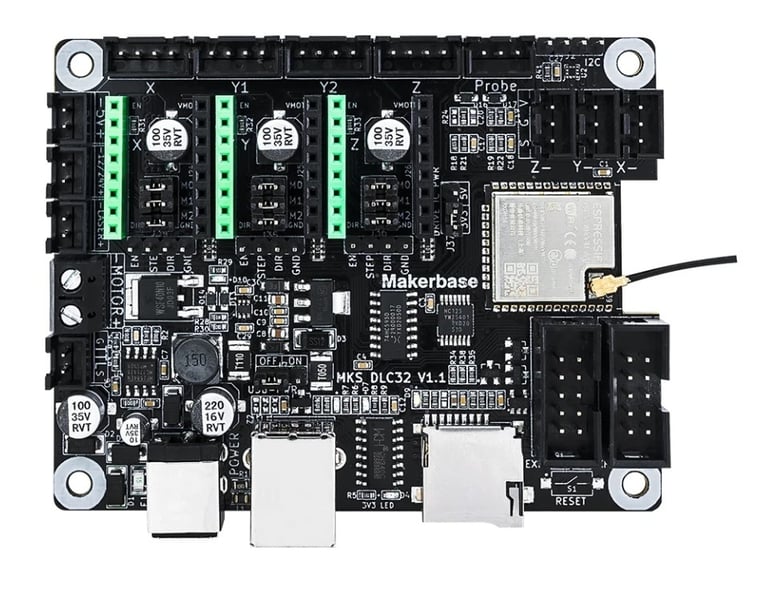

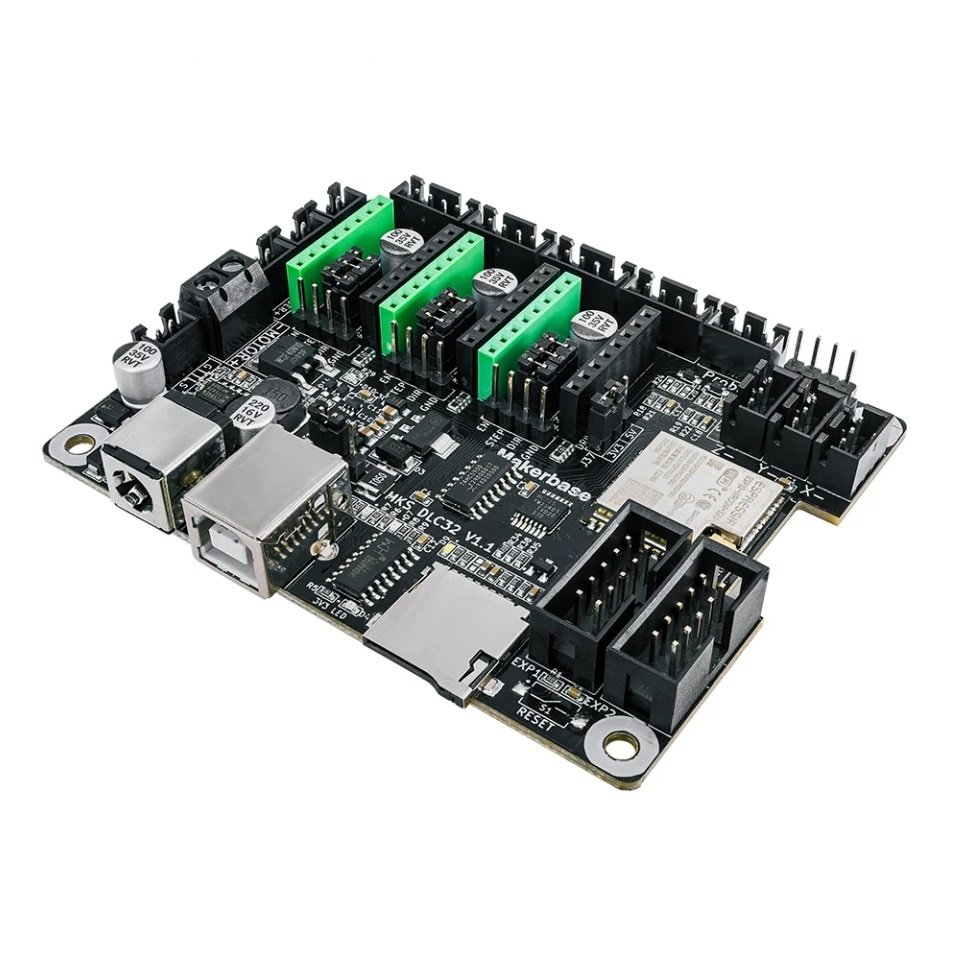

Controller Board

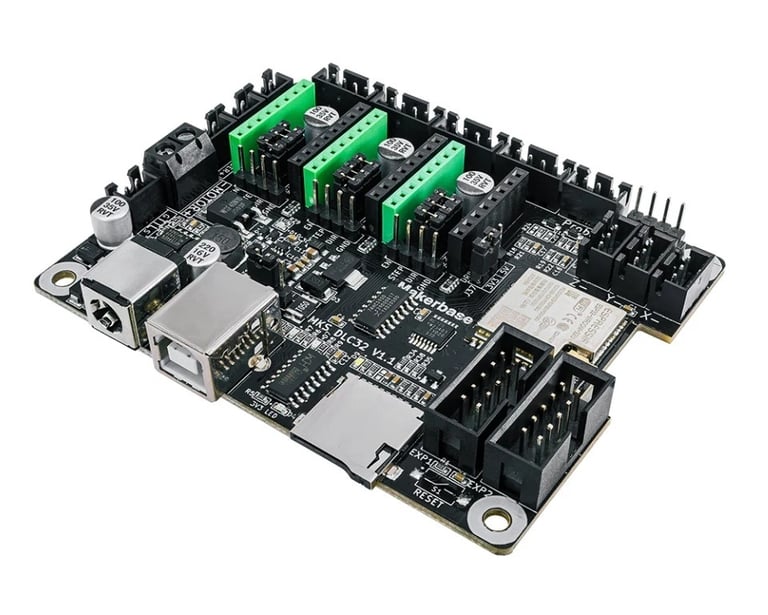

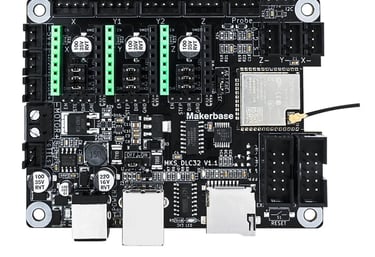

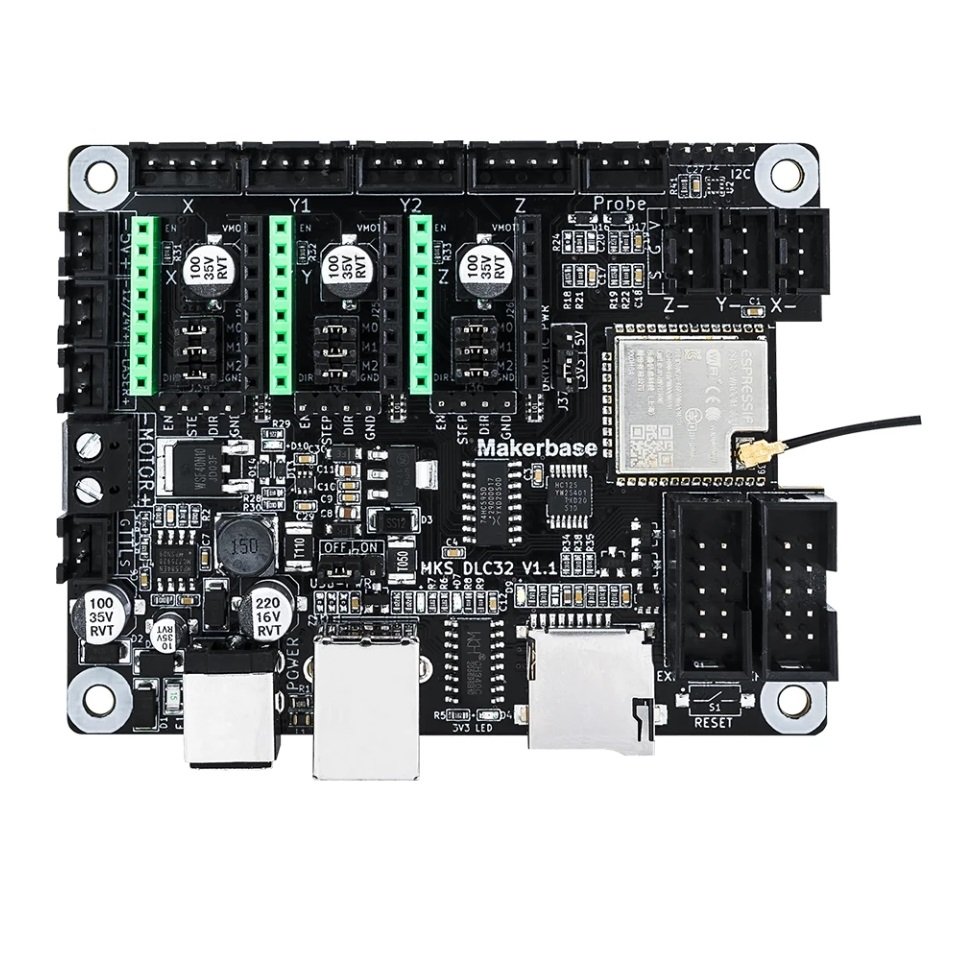

The Makerbase MKS DLC32 is a powerful and user-friendly controller for laser engravers. Built with an ESP32 microcontroller, it supports Wi-Fi control, mobile apps, and touchscreen operation.

Key Features of the MKS DLC32:

• 32-bit processor for fast engraving speeds

• Wi-Fi support for remote control via a web browser or mobile app

• USB connection for PC-based operation

• Full compatibility with LightBurn & LaserGRBL

More information: Makerbase Official Page
Affiliate Link: Buy MKS DLC32 on AliExpress

How to Build Your Own MY-Laser CNC

If you want to build your own laser cutter, you’ll find everything you need right here!

3D Model & Bill of Materials (BOM)

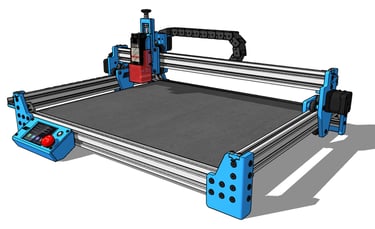

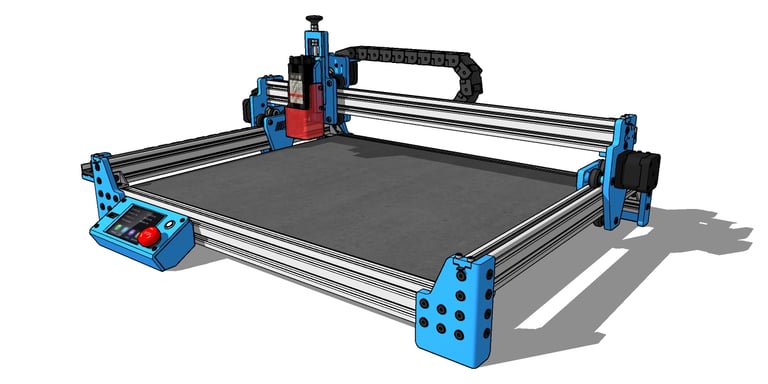

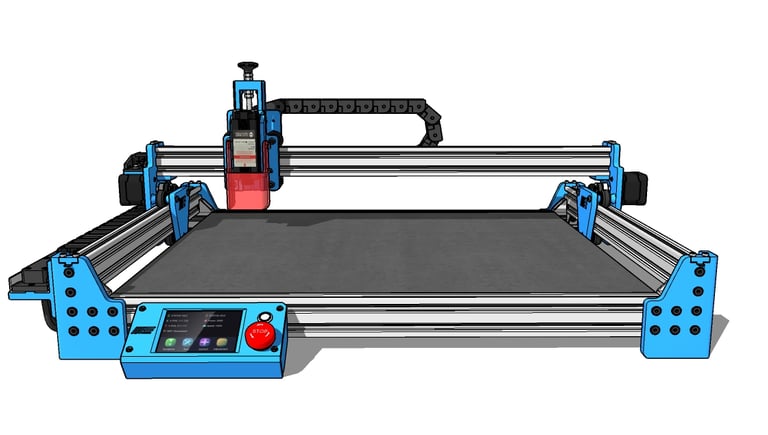

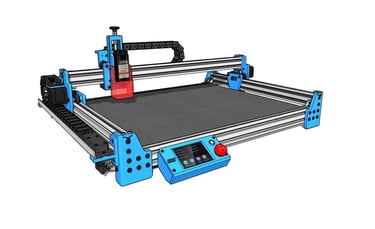

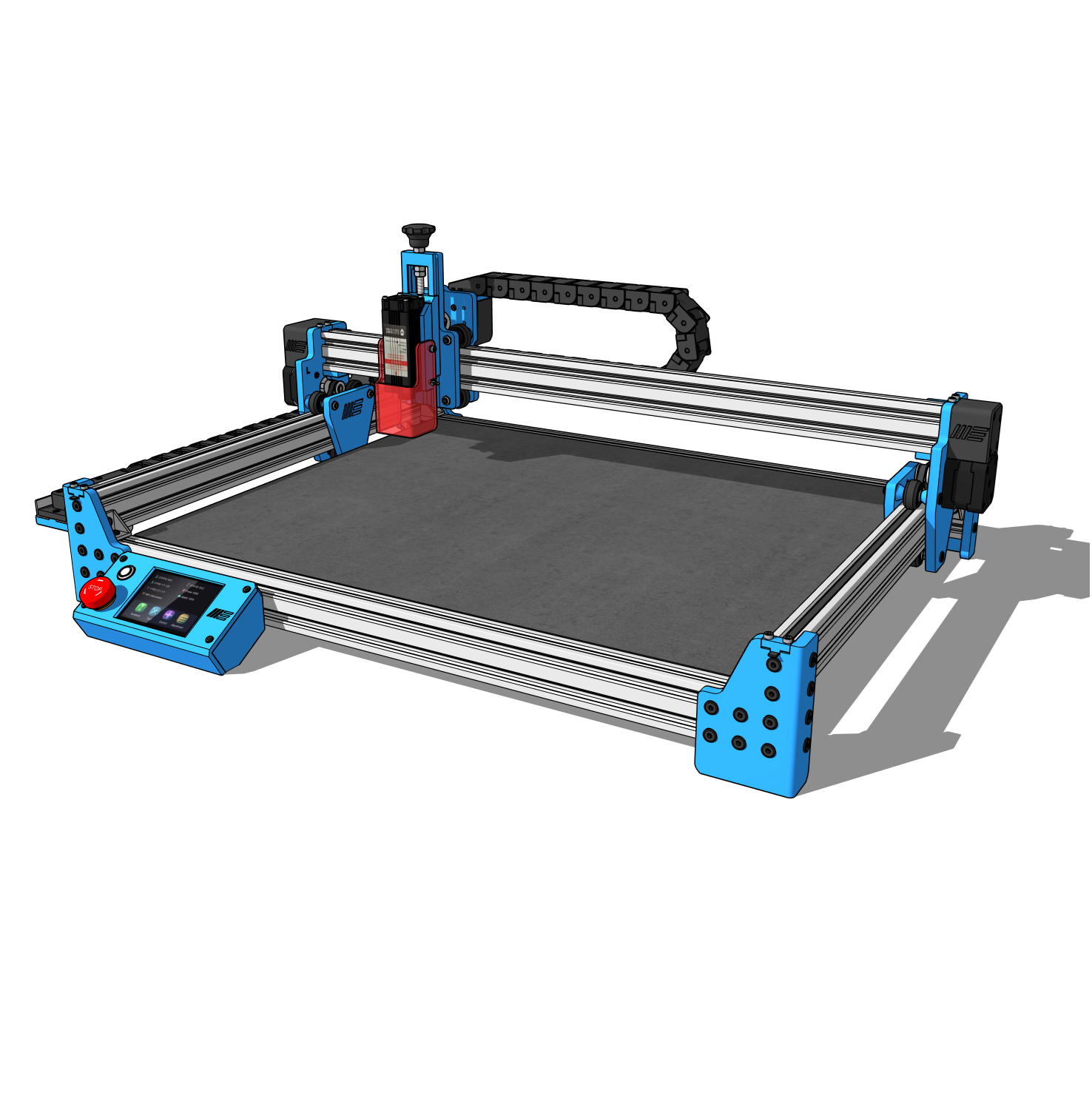

• Complete 3D model in SketchUp

• BOM (Bill of Materials) with links to all necessary parts

• 3D-printed parts list with STL downloads

• Buy 3D Printed Parts on my store

Development Roadmap

Ongoing improvements to MY-Laser CNC:

• Improve 3D drawing

• Add better wire strain relief system

• Adjust board location for better access to power supply plug

• Adjust X-Axis height to engrave thicker materials

• Add emergency stop button

• Add laser safety enclosure

Legal Notice & License

This project is licensed under Creative Commons - Attribution - NonCommercial - ShareAlike (CC BY-NC-SA).
Project: MY-Laser CNC | Author: Edgar Mata
