My-Giga 1m³ 3D Printer

Large-Scale Printing Solutions

Overview

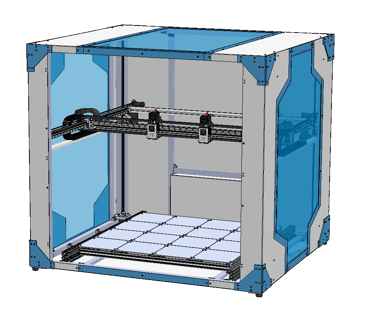

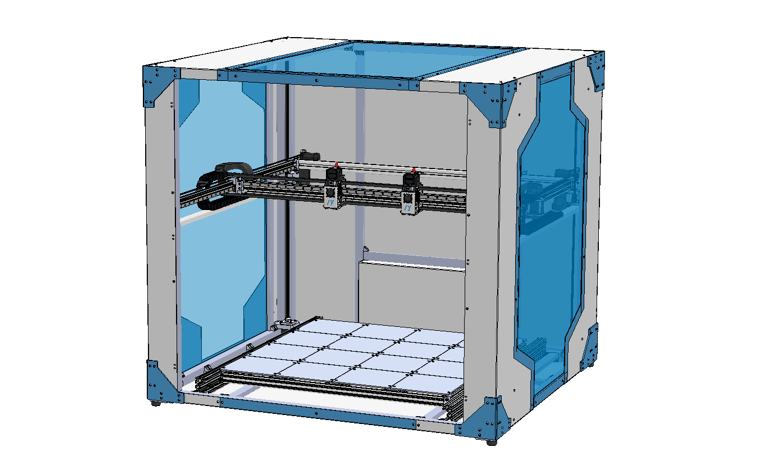

The My-Giga 1m³ is a professional-grade large-format 3D printer designed for industrial and professional applications demanding high precision, reliability, and versatility in creating large-scale components.

Key Features

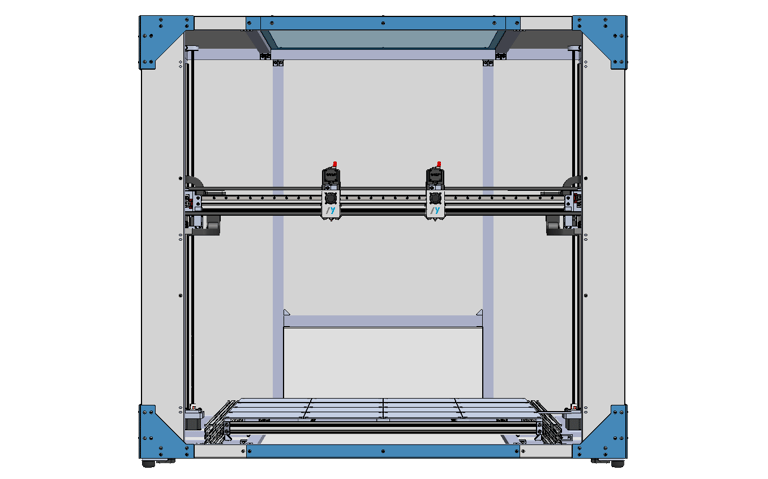

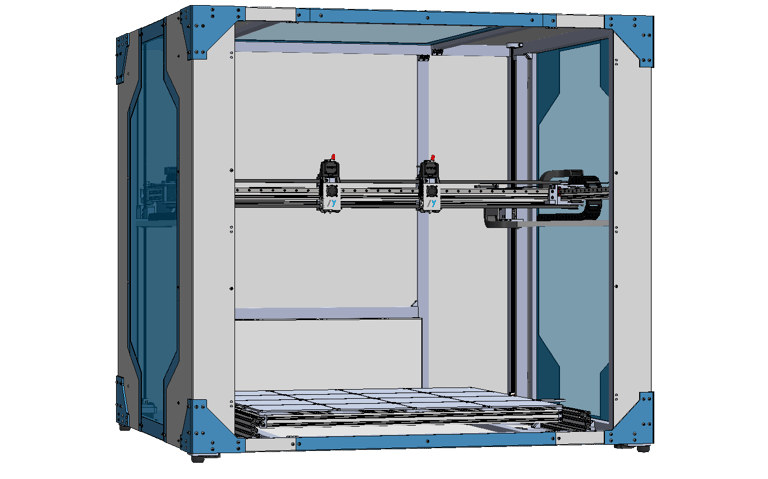

With a massive build volume of 1000 x 1000 x 1000 mm, the My-Giga 1m³ easily handles the production of large-scale items in a single printing operation, eliminating the need for complex assembly.

Equipped with an Independent Dual Extruder (IDEX) system, the My-Giga 1m³ allows you to operate two extruders independently for greater flexibility and productivity:

Singular Mode: Standard single-extruder printing.
Dual Color Mode: Print with two different colors or materials simultaneously.
Copy Mode: Double your productivity by printing two identical items simultaneously.
Mirror Mode: Print mirrored parts simultaneously, ideal for symmetrical components.
Support with Different Materials: Utilize soluble or break-away supports for easy removal and cleaner finishes.
Sequential Mode: Efficiently print multiple parts sequentially.

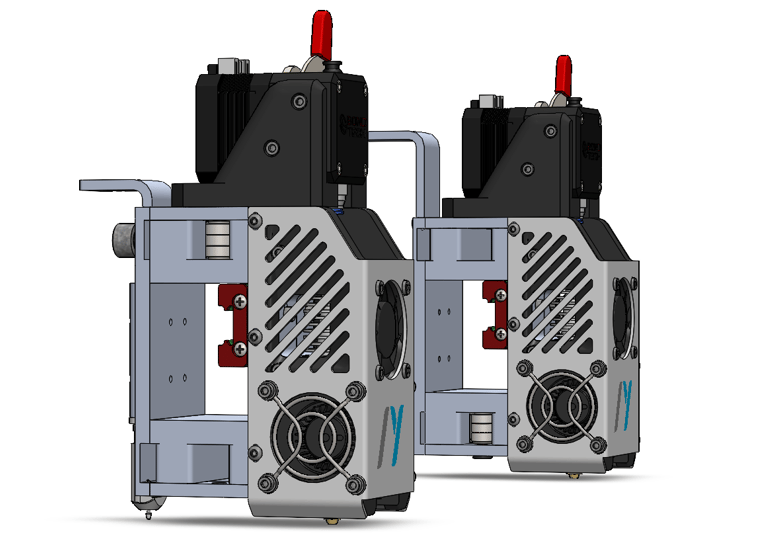

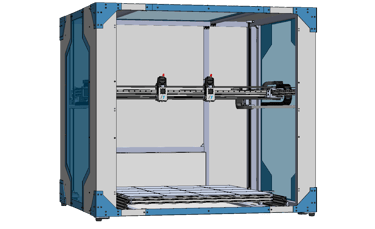

IDEX System - Independent Dual Extruders

E3D Super Volcano Extruder

The printer is equipped with the renowned E3D Super Volcano extruder, delivering significantly increased flow rates and enabling faster printing speeds without sacrificing print quality, making it ideal for large-scale manufacturing.

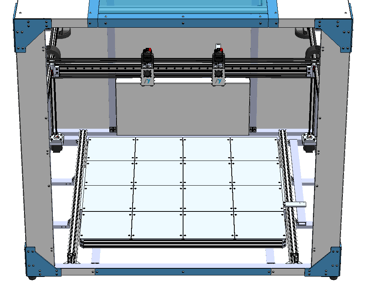

Segmented Heated Bed

The heated build platform is divided into 16 independently controlled segments, providing precise thermal control to ensure optimal adhesion and minimize warping, especially critical for large prints.

Advanced Firmware and Electronics

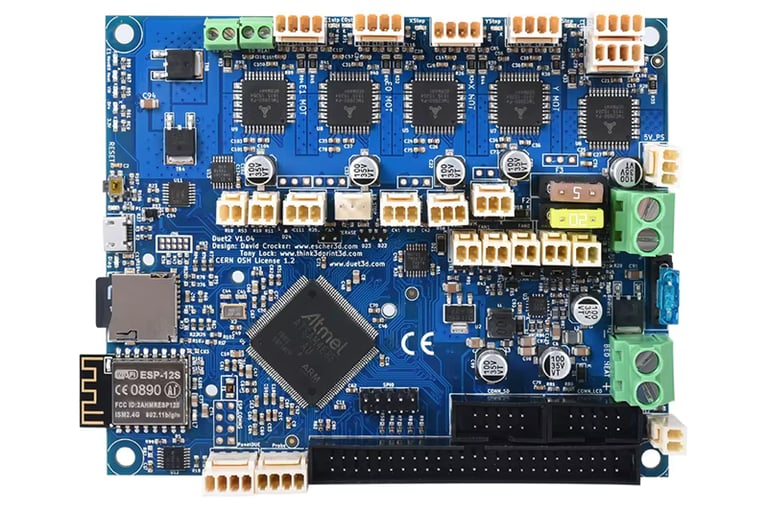

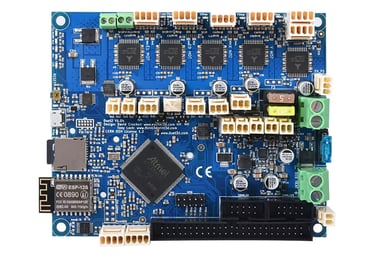

Powered by the robust RepRap Firmware and the Duet 2 WiFi controller board, the My-Giga 1m³ offers an intuitive web-based interface for remote monitoring, management, and customization of printing tasks.

Diverse Applications

Design and Architecture

Ideal for creating detailed architectural models, large-scale artistic installations, and custom design pieces, bringing complex ideas into reality.

Streamline your industrial processes by creating customized molds and tooling, significantly reducing both production costs and lead times.

Produce full-scale functional prototypes quickly, accelerating product development and innovation cycles.

Mold and Tool Manufacturing

Rapid Prototyping

Education and Research

An excellent resource for educational and research institutions, facilitating experimentation and development of large-scale academic projects.

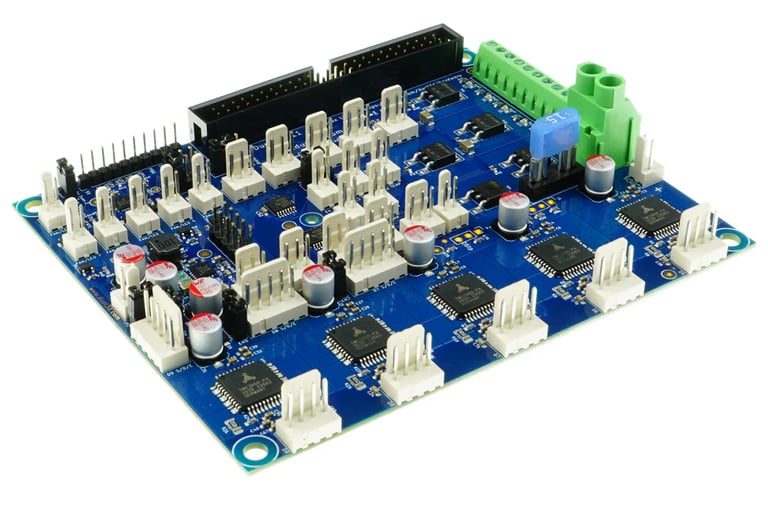

Controller Board

Duet controllers are highly regarded in the 3D printing community for their reliability, advanced features, and ease of use. Featuring integrated WiFi connectivity, intuitive web interfaces, and support for RepRap Firmware, Duet controllers ensure precision control, straightforward maintenance, and versatile customization capabilities, enhancing the performance and user experience of the My-Giga 1m³.

Key Features of Duet Controllers:

Powerful Processors: Duet controllers, such as the Duet 3 Mainboard 6HC, are equipped with 32-bit ARM Cortex-M7 microcontrollers running at up to 300MHz, ensuring swift and precise control over complex printing tasks. Duet 3D+4Duet 3D+4Duet 3D+4
High-Current Stepper Drivers: Models like the Duet 3 Mainboard 6HC feature six high-current stepper drivers, each capable of delivering up to 6.3A peak per phase. This allows for the operation of larger and more demanding stepper motors, enhancing the printer's capability to handle intricate and large-scale prints. Duet 3D+4Duet 3D+4Duet3D Documentation+4
Flexible Connectivity: Duet controllers offer multiple connectivity options, including Ethernet and optional WiFi modules. They also support expansion through the CAN-FD bus, enabling the integration of multiple expansion boards and tools for customized machine configurations. Duet3D Documentation+2Duet 3D+2Duet 3D+2
Advanced Firmware Support: Running on RepRapFirmware, Duet controllers provide extensive support for various machine geometries and are easily configurable to meet specific machine requirements. This firmware is open-source, allowing for continuous improvements and community-driven enhancements. Duet 3D+1Duet 3D+1
Comprehensive I/O Capabilities: With numerous inputs and outputs, including high-current outputs for heaters, PWM-controlled outputs for fans, and multiple temperature sensor inputs, Duet controllers offer versatile control over various printer components, facilitating complex and customized printing setups. Duet 3D+3Duet3D Documentation+3Duet3D Documentation+3

More information: Duet3D Official Page

Technical Specifications

Build Volume: 1000 x 1000 x 1000 mm
Nozzle Diameters: 0.6 mm, 0.8mm, 1.0 mm, 1.2 mm
Maximum Extruder Temperature: 300°C
Maximum Heated Bed Temperature: 120°C
Compatible Materials: PLA, PETG, ABS, ASA, Nylon, composites, and advanced technical filaments

Get Started Today!

Are you ready to revolutionize your large-scale 3D printing projects? The My-Giga 1m³ offers unparalleled performance, precision, and efficiency. Whether you're in industrial manufacturing, product prototyping, or large-format creative design, this printer is built to exceed expectations.
